Steel Metal Grain Bin Ventilation Type Selection Temperature Monitoring System

Brand Name : GMC

Certification : CE

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5-500 set a year

Delivery Time : 25 days

Packaging Details : Customized packaging

Name : Silo Grain Bin

type : Ventilation

Other : selection &Temperature monitoring system & material leval monitoring

Condition : New

Material : Steel, Steel, Galvanized Steel Sheets With 275g/M2 Zinc Coating

Contact Now

Ventilation type selection &Temperature monitoring system & material leval monitoring &Ventilation type selection

Main Features

Warehouse roof :The top cover plate is delta 1.0mm hot galvanized plate , and the domestic high quality hot galvanized sheet is selected , and there are four sealed natural ventilation Windows . The roof of the storehouse is equipped with inspection holes and climbing stairs . The storehouse is sealed with air cement and waterproof gasket , and there is a safety barrier around the cornice .The roof and the bulkhead are welded to ensure the sealing .

Storehouse tube : wall material selection of large steel mills quality hot dip galvanized coils .Two-sided galvanized quantity of 275 g / m2, finishing the galvanized layer of continuous , smooth , uniform , corrugated plate punch form .The jointing section of the barn is sealed with air - proof tape .

The main effect is to increase the shock resistance , lateral and vertical load , and increase the vertical stability of the warehouse . High strength bolt connection and no welding point are used for the vertical column and the bulkhead , thus avoiding the corrosion on the barn wall due to the welding reason .

Specification

Model	Hight	Layer	Volume	Capacity
Model	(M)	Layer	(CBM)	(MT)
GMC	3.93	1	5.06	3
GMC	4.41	1.5	6.62	3.8
GMC	5.05	2	8.01	4.8
GMC	5.53	2.5	9.27	5.6
GMC	6.17	3	10.96	6.6
GMC	6.7	3.5	12.68	7.6
GMC	4.96	1	13.52	8.1
GMC	5.46	1.5	16.52	10
GMC	6.08	2	20.17	12
GMC	6.58	2.5	23.17	14
GMC	7.2	3	26.82	16
GMC	7.7	3.5	29.82	17.9
GMC	5.94	1	27.17	16.3
GMC	6.44	1.5	32.67	19.6
GMC	7.06	2	38.99	23.4
GMC	7.56	2.5	44.5	26.7
GMC	8.18	3	50.82	30.5

Product Tags:

soybean storage bins

livestock feed bins

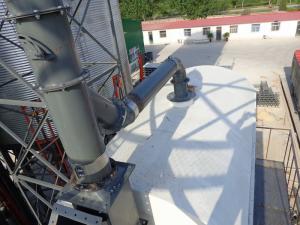

Steel Metal Grain Bin Ventilation Type Selection Temperature Monitoring System Images
